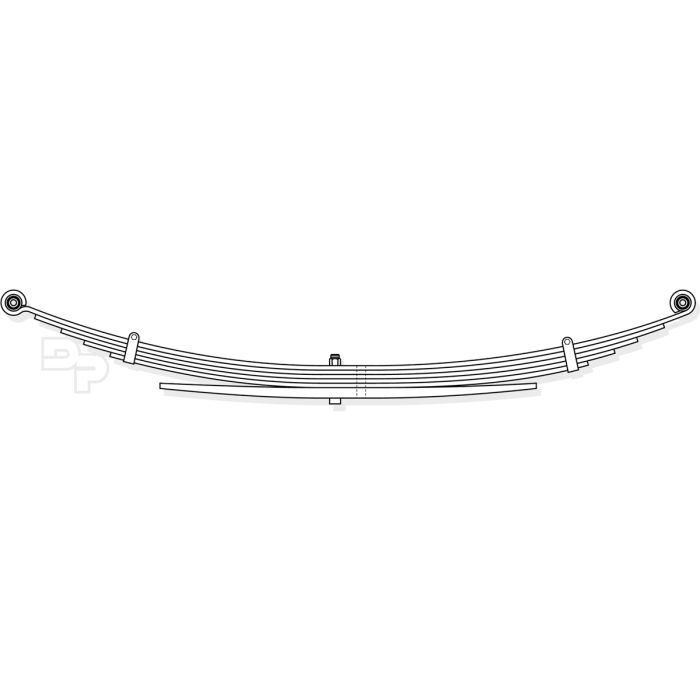

2002-2008 Dodge Ram 1500 Leaf Spring | 34-1487
1,700 lbs. carrying capacity.
Year: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Make: Dodge
Model: Ram 1500
OEM Number: 52110137AG
Width 2 1/2 in.
PL-1 S.E. (A) 31 1/4 in.
PL-1 L.E. (B) 32 in.
Eye Type/Bushing S.E. Ber/RB-272
Eye Type/Bushing L.E. Std/RB-271
Arch (C) 7 1/2 in.
Number of Leaves 3/1/Wedge
Grading 1/380 2/360 2ND 1/662 Wedge
Pack Thickness (D) 1 15/16 in.
Spring Capacity at Pad 1,700 lbs.
Remarks Two stage; Dowel pin
Sold individually.
Elevate Your Dodge Ram 1500's Performance with Our 34-1487HD Leaf Springs.
Experience unparalleled durability and performance with our meticulously crafted 34-1487HD Leaf Springs, carefully designed from 100% American steel. Tailor-made for a precise fit with heavy-duty Dodge Ram 1500 trucks from 2002 to 2008, these springs provide optimal support and suspension.
Engineered with unwavering precision, every detail of our leaf springs is meticulously crafted to meet the highest quality standards. Through relentless testing and rigorous quality control checks, we guarantee unmatched reliability and longevity, even in the harshest road conditions.
Our dedicated team of experts is here to assist you at every step along the way. Whether you need guidance on finding the perfect fit for your vehicle or have specific questions about performance capabilities, our knowledgeable professionals are just one call away. Contact us today at 1-800-922-3283 or email store.superiorspring@gmail.com.
Proudly manufactured in America by our dedicated team that consistently surpasses industry benchmarks, choose superior superiority when it comes to equipping your heavy-duty Dodge Ram vehicles from '02-'08. Don't settle for anything less than top-tier leaf springs that will ensure peak operation under any circumstances.
And remember, when replacing leaf springs, the removed u-bolts cannot be reused. Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading, preventing the u-bolt from being adequately re-torqued.
| Model | Ram 1500 |
|---|---|
| Capacity lbs | 1700 |
| OEM Number | 52110137AG |
| Number of Leaves | 5/1/PD |
