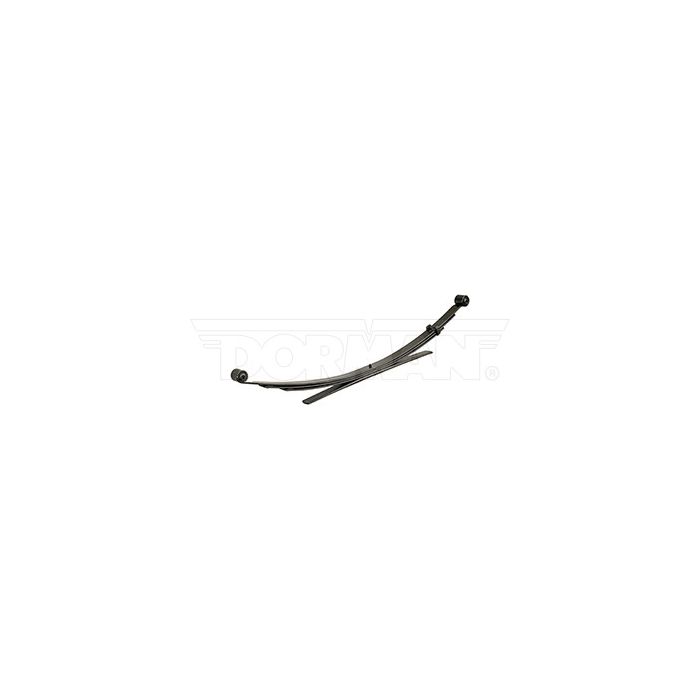

2002-2009 Dodge Ram 1500 Leaf Spring | 34-1451
1,700 lbs. carrying capacity.
There is a heavy-duty version of this spring available: 34-1451HD.
Year: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Make: Dodge
Model: Ram 1500
OEM Number: 52113141AI
Width 2 1/2 in.
PL-1 S.E. (A) 31 1/4 in.
PL-1 L.E. (B) 32 in.
Eye Type/Bushing S.E. Ber/RB-257
Eye Type/Bushing L.E. Std/RB-271
Arch (C) 7 1/2 in.
Number of Leaves 3/1
Grading 1/380 2/360 2ND 1/662
Pack Thickness (D) 1 15/16 in.
Spring Capacity at Pad 1,700 lbs.
Remarks Two stage; Dowel pin
Sold individually.
Experience unparalleled durability and performance with our 34-1451 leaf springs, expertly crafted from 100% American steel. Tailor-made to provide optimal support and suspension for heavy-duty Dodge Ram 1500 trucks from 2002 to 2009, these leaf springs ensure a precise fit.
Manufactured with unwavering precision and held to the highest quality standards, our leaf springs are built tough to withstand any road conditions you may face. Each spring undergoes meticulous testing through rigorous quality control checks, ensuring that reliability and longevity come standard in every product we offer.
Have questions about which leaf spring is right for your vehicle? Need assistance understanding their performance capabilities? Our dedicated team of experts is here to help! Contact us at 1-800-922-3283 or send an email to store.superiorspring@gmail.com – no question goes unanswered!
We take great pride in surpassing industry benchmarks by offering only top-tier products. When you choose our high-quality North America-manufactured leaf springs, expect nothing short of exceptional results for your heavy-duty Dodge Ram truck from '02-'09 - even under the toughest conditions.
Upgrade your ride today with confidence, knowing that superior craftsmanship has gone into creating each and every one of our premium-grade leaf springs.
And remember, when replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts feature a smooth rolled thread, while mating hi-nuts are crafted with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although not always visible to the naked eye, this stretching can damage the threads. Removing the hi-nuts from the u-bolt may result in cross-threading, preventing the u-bolt from being adequately re-torqued.
| Model | Ram 1500 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 1700 |
| OEM Number | 52113141AI |
| Number of Leaves | 3/1 |
