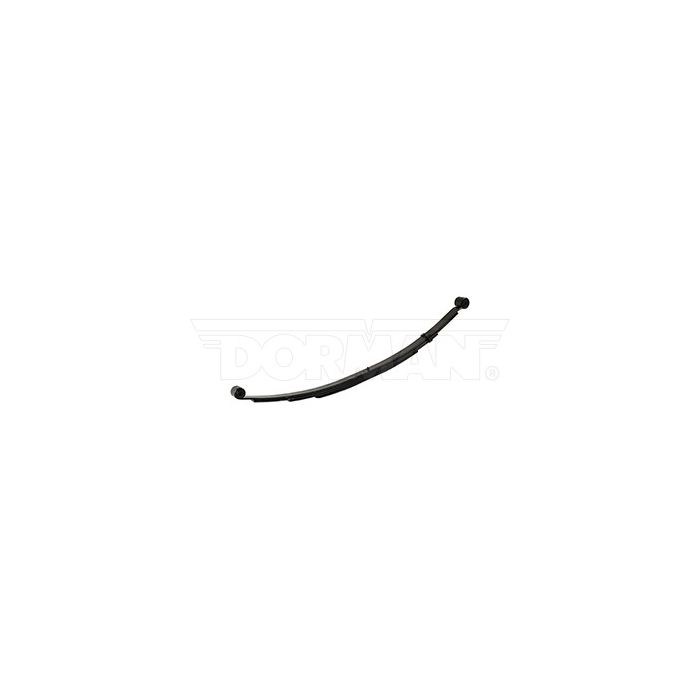

2002-2008 Dodge Ram 1500 Leaf Spring | 34-1497
1,700 lbs. carrying capacity.
Year: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Make: Dodge
Model: Ram 1500
OEM Number: 05290777AA
Width 2 1/2 in.
PL-1 S.E. (A) 31 1/4 in.
PL-1 L.E. (B) 32 in.
Eye Type/Bushing S.E. Ber/RB-272
Eye Type/Bushing L.E. Std/RB-271
Arch (C) 6 1/2 in.
Number of Leaves 3/1
Grading 1/380 1/401 1/360 2ND 1/702
Pack Thickness (D) 2 3/16 in.
Spring Capacity at Pad 1,900 lbs.
Remarks SRT-10 4 door cab; Two stage; Dowel pin
Sold individually.
Elevate Your Dodge Ram 1500's Performance with Our 34-1503HD Leaf Springs.
Experience unmatched durability and performance with our meticulously crafted 34-1503HD Leaf Springs, designed for heavy-duty Dodge Ram 1500 trucks from 2002 to 2008. Crafted to perfection from 100% American steel, these leaf springs provide optimal support and suspension, guaranteeing a precise fit.
Engineered with unwavering precision and manufactured to meet the highest quality standards, our leaf springs are built tough to withstand even the harshest road conditions. Rigorous quality control checks ensure their reliability and longevity, making them the ideal choice for enhancing your vehicle's performance.
We take pride in offering top-tier products that consistently outperform industry benchmarks. When you choose our high-quality leaf springs, proudly made in North America, you can trust that your vehicles will operate at peak performance, no matter how demanding the circumstances.
If you have questions about compatibility or need assistance finding the perfect fit, our team of experts is always here to help. Contact us today via phone at 1-800-922-3283 or email us at store.superiorspring@gmail.com for reliable advice tailored specifically to your needs.
Revitalize your heavy-duty Dodge Ram experience by upgrading its suspension system with our exceptional leaf springs. Trust Superior Spring's commitment to unmatched durability and unbeatable performance, all backed by American craftsmanship.
And remember, when replacing leaf springs, the removed u-bolts cannot be reused. Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading, preventing the u-bolt from being adequately re-torqued.
| Model | Ram 1500 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 1900 |
| OEM Number | 05290777AA |
| Number of Leaves | 3/1 |
