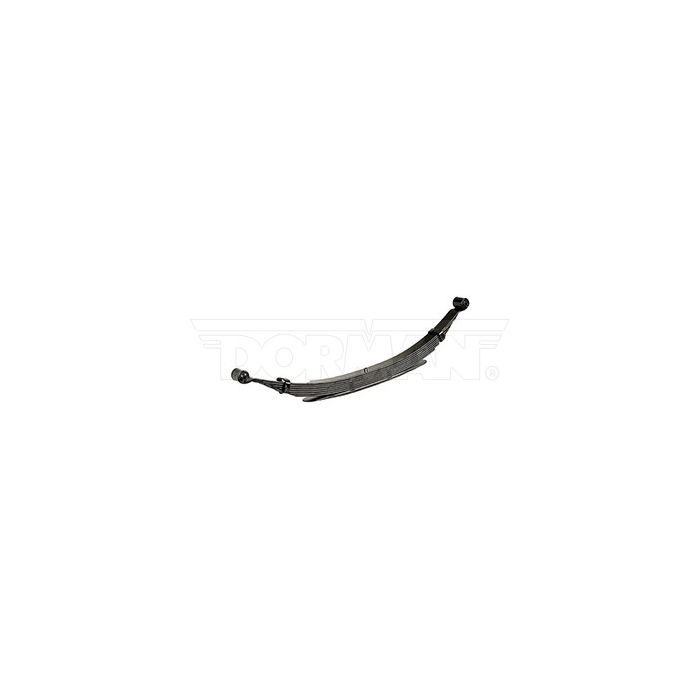

1973-1989 Chevrolet / GMC P10/P1500/P20/P2500/P30/P3500 Leaf Springs | 22-499

Year: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
Make: Chevrolet
Model: P10, P20, P30, P1500, P2500, P3500
Part Number 22-499
OEM Number 332843
Width 2.5 in.
PL-1SE (A) 26 in.
PL-1LE (BE) 26 in.
Eye Type/Bushing S.E. Ber/RB-117
Eye Type/Bushing L.E. Ber/RB-117
Arch (C) 6.25 in.
Grading 7/323 2ND 1/675
Number of Leaves 6/1
Pack Thickness (D) 2.9375 in.
Capacity 3390 lbs.
Remarks Two stage; no tip inserts. Sold individually.

Introducing the 22-499: Unrivaled Durability and Performance for your Heavy-Duty Chevrolet P10 Trucks.

Get ready for an unparalleled experience of durability and performance with our premium-grade leaf springs, meticulously crafted from 100% American steel. Specifically designed for heavy-duty vehicles like the legendary Chevrolet P10 trucks (1973-1989), these essential components offer optimal support and suspension.

Quality is non-negotiable for us. Our leaf springs are manufactured with unwavering precision using cutting-edge technology, ensuring they meet the highest industry standards. Rigorous quality control checks throughout production guarantee that every spring is built to endure even the harshest road conditions.

Not sure which leaf spring fits best? No problem! Our team of experts is here to assist you at every step of the way. Whether you need guidance on compatibility or have specific questions about their exceptional performance capabilities, just reach out! Easily contact us via phone at 1-800-922-3283 or email us directly at store.superiorspring@gmail.com.

At our company, we take pride in providing top-tier products that exceed expectations time after time. By choosing our high-quality leaf springs proudly manufactured right here in America, you're guaranteeing that your heavy-duty Chevrolet P10 vehicles operate at peak efficiency—effortlessly conquering even the most demanding terrains.

Upgrade now with confidence, knowing that superior reliability awaits, with each ride made smoother by our unbeatable craftsmanship.

When replacing leaf springs, be aware that the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading that will not allow the u-bolt to be adequately re-torqued.Chevy
