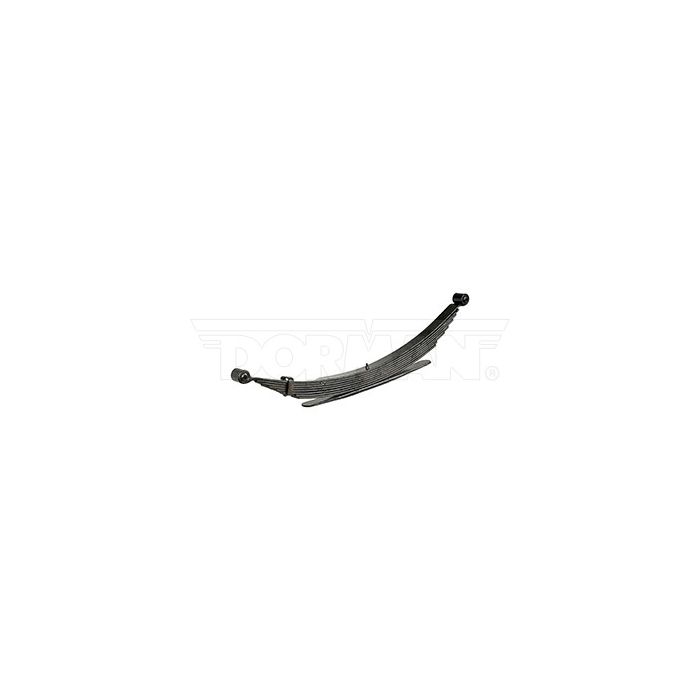

1969 Chevrolet / GMC P20/P30/P2500/P3500 Leaf Springs | 22-419HD
Secure online checkout
4,100 lbs. carrying capacity.
There is an OEM replacement version of this spring available: 22-419.
Year: 1969, 1970, 1971, 1972
Make: Chevrolet
Model: P20, P30, P2500, P3500
Part Number: 22-419HD
Width: 2.5 in.
PL-1SE (A): 26 in.
PL-1LE (BE): 26 in.
Eye Type/Bushing S.E.: Ber/RB-117
Eye Type/Bushing L.E.: Ber/RB-117
Arch (C): 6.625 in.
Grading: 8/360 2ND 1/770
Number of Leaves: 8/1
Pack Thickness (D): 3.625 in.
Capacity: 4100 lbs.
Remarks: Two stage; Replaces Dallas similar design in pairs. Sold individually.
Experience unmatched durability and performance with our 22-419HD leaf springs, expertly crafted from premium American steel. Perfectly tailored to fit a range of heavy-duty Chevrolet P20 trucks manufactured in the year 1969.
Designed with unwavering precision and engineered to meet the highest quality standards, our leaf springs are built tough to tackle even the harshest road conditions. Rest assured that they will withstand whatever challenges come your way thanks to rigorous quality control checks.
Got questions about application or compatibility? Our team of knowledgeable professionals is here for you every step of the way. Whether you need help finding the perfect fit or have concerns about performance, we're just one call away at 1-800-922-3283 or reach out via email at store.superiorspring@gmail.com.
We take pride in delivering top-tier leaf springs that exceed industry benchmarks again and again. Choose superior-quality products proudly made right here in America for optimal operation on your heavy-duty Chevrolet P20 vehicles from 1969 no matter how demanding those conditions may be.
When replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.Chevy 22419hd 22 419hd
| Model | P20 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 4100 |
| Number of Leaves | 6/1 |
