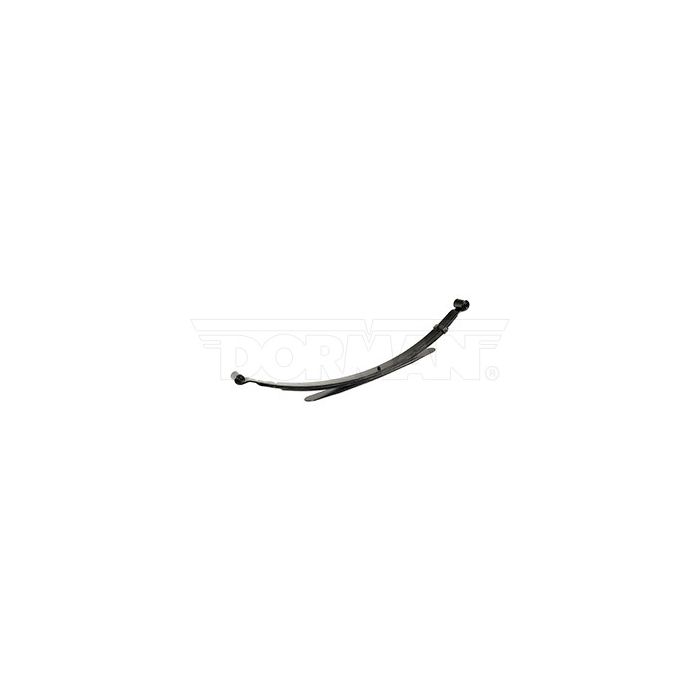

1980-1996 Ford F150/F250/F350 Leaf Springs | 43-713HD

Year: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Make: Ford
Model: F150, F250, F350
Width: 3 in.
PL-1 S.E. (A): 25 in.
PL-1 L.E. (B): 31.375 in.
Eye Type/Bushing S.E.: Ber/RB-158
Eye Type/Bushing L.E.: Ber/RB-157
Arch (C): 6.625 in.
Number of Leaves: 4/1
Grading: 4/323 2ND 1/662
Pack Thickness (D): 2 in.
Spring Capacity at Pad: 2450 lbs.
Remarks: Two stage; Heavy duty for F150 (4WD)
Sold individually.

Experience unrivaled durability and performance with our 43-713HD leaf springs. Crafted from premium, American steel, these essential components are designed to provide optimal support and suspension for a precise fit in your heavy-duty vehicles.

We understand that quality matters, which is why our leaf springs are manufactured with unwavering precision. Rigorous quality control checks guarantee their reliability and longevity on the toughest roads. Rest assured knowing you're investing in top-tier products that consistently exceed industry standards.

Got questions about application or compatibility? Our team of experts is here to help! We pride ourselves on offering exceptional customer service, so reach out to us at 1-800-922-3283 or email store.superiorspring@gmail.com anytime.

Choose superior craftsmanship made right here in North America when it comes to your Ford F150 trucks. Operate at peak performance even under demanding conditions by selecting our high-quality leaf springs today.

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
