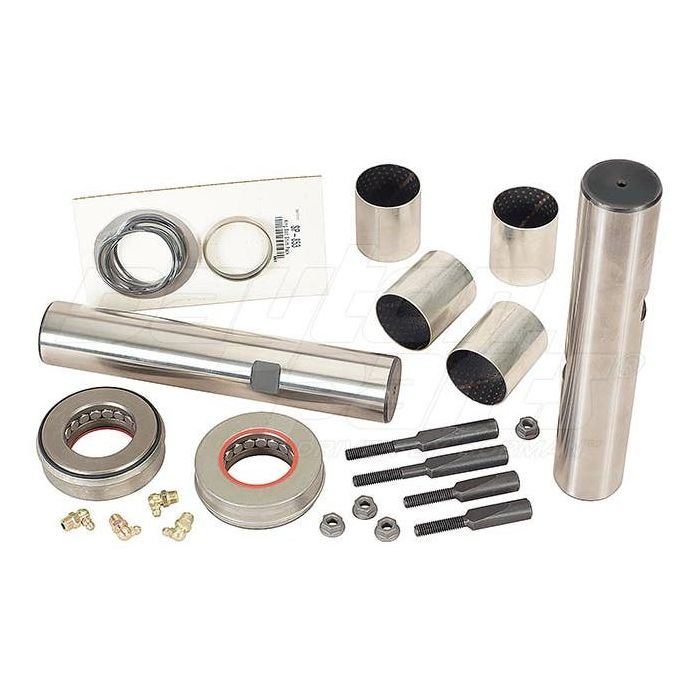

Standard King Pin Set | 300-322DD
Secure online checkout
Pin Length: 10.94
Pin Diameter: 2.046
Thrust Bearing: T208S
Bushing Type: 302-320 (C)
Model: I100W through I220W
OEM #: 329023
Make: Dana, Eaton, Spicer Sterling
Brand: Dayton
Axle Number: I160W
Cross Reference: 329023 (EAT), 460.506C (ARJ), FKP152C (FLG), KB854CB (ELG), KP651B (S&G, R200279 (ROC), SKB-628 (UCF), TK628 (TRA)
Length Range: 10.00-10.99
Diameter Range: 2.000-2.099
The king pin serves as the pivot point which attaches the wheel spindle to the axle beam and is considered to be the most critical component of the axle assembly. It provides the means for the drag link, in connection with the steering arm, to change the lateral movement into turning motion.
\nSince the king pin is the very heart of the axle assembly, it is mandatory for a replacement part of this nature to be of the highest quality. All Dayton Parts pins utilize high quality steel and are heat treated for superior strength and long service life. A satin smooth micro-finish insures minimum steering effort yet retains the ability to hold grease for proper lubrication.
\nFits Dana Models I100F through I220W.
Fits Sterling A, L & S Series.
| Thrust Bearing | T208S |
|---|---|
| Thrust Bearing Outer Dia (In.) | 3.656 |
| Thrust Bearing Inner Dia (in.) | 2.078 |
| Thrust Bearing Thickness/Width (in.) | 1.121 |
| Brand | Dayton |
