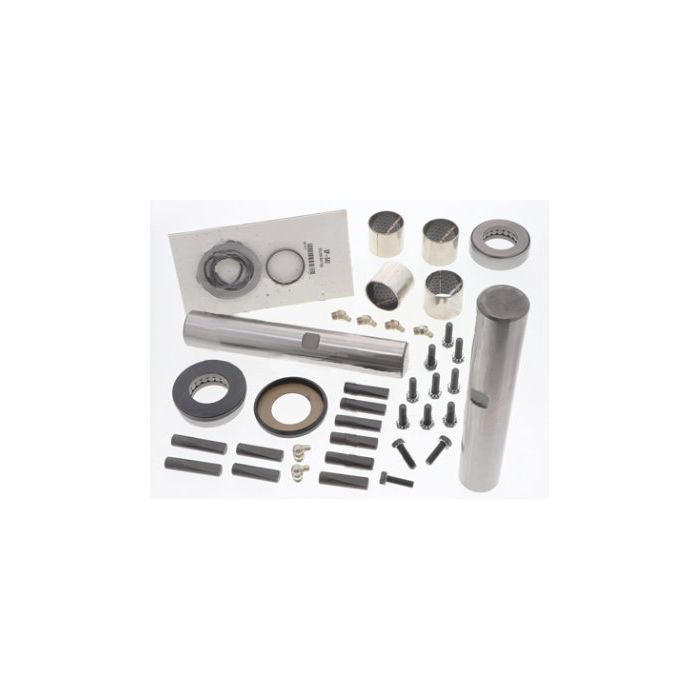

Standard King Pin Set | 300-269
$266.44
In stock
SKU
300-269
Secure online checkout
Pin Type: Double Lock
Pin Length: 9.66
Pin Diameter: 1.609
Thrust Bearing: T163
Bushing Type: 302-269 (C)
Model: I50 through I161
OEM #: 1658934C93, 343KK100
Make: Dana, Eaton, Spicer Navistar, International
Brand: Dayton
Axle Number: 02118, 02242, 02337, 02339, 0234, 02340, 02341, 120, FA118, FA242, FA329, FA337, FA339, FA340, FA341, I108, I120, I120S, I132
Cross Reference: 1658934C91 (NAV), 1658934C93 (NAV), 20-2471 (BTC), 343KK100 (NAV), 343KK103 (DAN), 50.140.09 (KZR), 70.140.09 (KZR), 8617C (MOG), E-6875C (EUC), FAK5453 (INT), FKP113C (FLG), K140I (KZR), K594 (DAL), KP-269 (JRS), KP2390 (TWD), KP606 (S&G, R200278 (ROC), S-4988 (S&S), SKB-606 (IMP), TK606 (TRA)
Length Range: 9.00-9.99
Diameter Range: 1.600-1.699
The king pin serves as the pivot point which attaches the wheel spindle to the axle beam and is considered to be the most critical component of the axle assembly. It provides the means for the drag link, in connection with the steering arm, to change the lateral movement into turning motion. \n \nSince the king pin is the very heart of the axle assembly, it is mandatory for a replacement part of this nature to be of the highest quality. All Dayton Parts pins utilize high quality steel and are heat treated for superior strength and long service life. A satin smooth micro-finish insures minimum steering effort yet retains the ability to hold grease for proper lubrication. \n \nFits Dana I50 through I161. \nFits Navistar 5000 Series (5010, F5010, 5050, F5050, 5070 and F5070), 5370 Series (COF5870), 9000 Series (9100, 9200, 9300, 9400, 9600, 9700, 9800, CO9670, COF9670 and EAGLE), Cargostar (CO1610A/B, CO1630A/B and CO1650A/B, CO1710A/B, CO1730A/B and CO1750A/B, CO1810A/B, COF1810A/B, CO1830A/B and CO1850A/B, CO1910A/B, COF1910A/B, CO1950A/B and COF1950A/B), S Series (1452SC, 1624, 1645LP, 1652SC, 1654, 1723, 1724, 1734, 1753 and 1754, 1823, 1824 4X2, 1853, 1853FC and 1854 4X2, 1924, F1924 6X4, 1925, 1954, F1954 6X4 and 1955, 2124, 2125, F2125, 2154, 2155 and F2155, 2275, F2275, 2276 and F2276, 2375 and F2375, 2524, F2524, 2554, F2554, 2574, F2574, 2575 and F2575, 2624, F2624, 2654, F2654, 2674, F2674, 2675 and F2675).
Pin Length: 9.66
Pin Diameter: 1.609
Thrust Bearing: T163
Bushing Type: 302-269 (C)
Model: I50 through I161
OEM #: 1658934C93, 343KK100
Make: Dana, Eaton, Spicer Navistar, International
Brand: Dayton
Axle Number: 02118, 02242, 02337, 02339, 0234, 02340, 02341, 120, FA118, FA242, FA329, FA337, FA339, FA340, FA341, I108, I120, I120S, I132
Cross Reference: 1658934C91 (NAV), 1658934C93 (NAV), 20-2471 (BTC), 343KK100 (NAV), 343KK103 (DAN), 50.140.09 (KZR), 70.140.09 (KZR), 8617C (MOG), E-6875C (EUC), FAK5453 (INT), FKP113C (FLG), K140I (KZR), K594 (DAL), KP-269 (JRS), KP2390 (TWD), KP606 (S&G, R200278 (ROC), S-4988 (S&S), SKB-606 (IMP), TK606 (TRA)
Length Range: 9.00-9.99
Diameter Range: 1.600-1.699
The king pin serves as the pivot point which attaches the wheel spindle to the axle beam and is considered to be the most critical component of the axle assembly. It provides the means for the drag link, in connection with the steering arm, to change the lateral movement into turning motion. \n \nSince the king pin is the very heart of the axle assembly, it is mandatory for a replacement part of this nature to be of the highest quality. All Dayton Parts pins utilize high quality steel and are heat treated for superior strength and long service life. A satin smooth micro-finish insures minimum steering effort yet retains the ability to hold grease for proper lubrication. \n \nFits Dana I50 through I161. \nFits Navistar 5000 Series (5010, F5010, 5050, F5050, 5070 and F5070), 5370 Series (COF5870), 9000 Series (9100, 9200, 9300, 9400, 9600, 9700, 9800, CO9670, COF9670 and EAGLE), Cargostar (CO1610A/B, CO1630A/B and CO1650A/B, CO1710A/B, CO1730A/B and CO1750A/B, CO1810A/B, COF1810A/B, CO1830A/B and CO1850A/B, CO1910A/B, COF1910A/B, CO1950A/B and COF1950A/B), S Series (1452SC, 1624, 1645LP, 1652SC, 1654, 1723, 1724, 1734, 1753 and 1754, 1823, 1824 4X2, 1853, 1853FC and 1854 4X2, 1924, F1924 6X4, 1925, 1954, F1954 6X4 and 1955, 2124, 2125, F2125, 2154, 2155 and F2155, 2275, F2275, 2276 and F2276, 2375 and F2375, 2524, F2524, 2554, F2554, 2574, F2574, 2575 and F2575, 2624, F2624, 2654, F2654, 2674, F2674, 2675 and F2675).
| Thrust Bearing | T163 |
|---|---|
| Thrust Bearing Outer Dia (In.) | 2.398 |
| Thrust Bearing Thickness/Width (in.) | 0.656 |
| Brand | Dayton |
