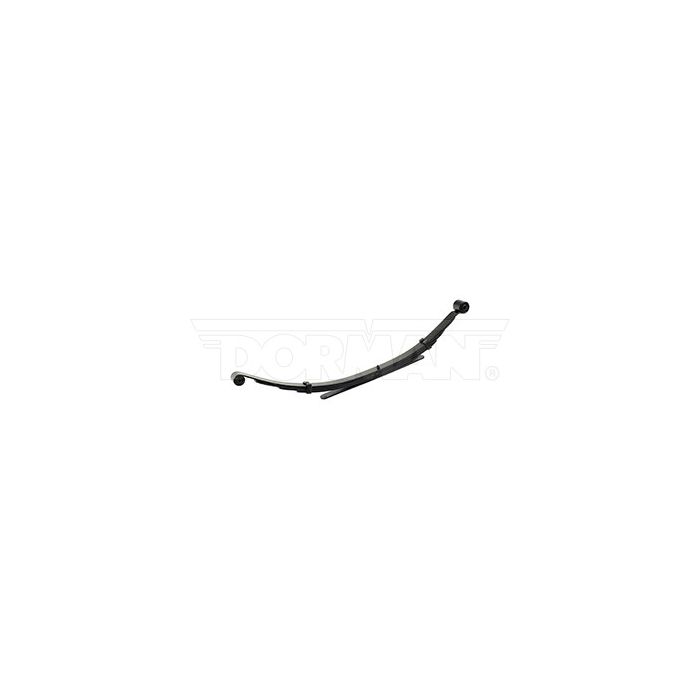

1997-2011 Dodge Dakota Leaf Spring | 34-1501
2,200 lbs. carrying capacity.
Year: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
Make: Dodge
Model: Dakota
OEM Number: 4L5Z5560EA / 4L545560EA
Width 2 1/2 in.
PL-1 S.E. (A) 25 3/4 in.
PL-1 L.E. (B) 31 in.
Eye Type/Bushing S.E. Ber/RB-296*
Eye Type/Bushing L.E. Ber/RB-297
Arch (C) 6 1/8 in.
Number of Leaves 3/1
Grading 1/307 2/291 2ND 1/558
Pack Thickness (D) 1 11/16 in.
Spring Capacity at Pad 1,200 lbs.
Remarks Two stage
* We substitute alternate bushings that cannot be used to replace the indicated OE.
Sold individually.
Upgrade Your Dodge Dakota's Suspension with Our 34-1501HD Leaf Springs.
Experience superior durability and performance with our meticulously crafted 34-1501HD Leaf Springs, designed exclusively for heavy-duty Dodge Dakota trucks manufactured from 1997 to 2011. These tailor-made leaf springs provide optimal support and suspension, ensuring a precise fit for your vehicle.
Crafted from 100% American steel, our leaf springs meet the highest quality standards during the manufacturing process, guaranteeing unwavering precision in every detail. Our engineers have gone above and beyond to create leaf springs capable of withstanding even the harshest road conditions. Rigorous quality control checks further ensure their reliability and longevity.
If you need assistance finding the right fit or want more information on their exceptional performance, our team of experts is always available to help. Reach out to us at +1 (800) 922-3283 or via email at store.superiorspring@gmail.com.
At our company, we take immense pride in surpassing industry benchmarks with excellence. Experience peace of mind knowing that you've chosen high-quality leaf springs manufactured in America for your heavy-duty Dodge Dakota vehicles, ensuring peak operation even under demanding circumstances.
And remember, when replacing leaf springs, the removed u-bolts cannot be reused. Suspension u-bolts feature a smooth rolled thread, while mating hi-nuts are crafted with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although not always visible to the naked eye, this stretching can damage the threads. Removing the hi-nuts from the u-bolt may result in cross-threading, preventing the u-bolt from being adequately re-torqued.
| Model | Dakota |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 2200 |
| OEM Number | 52855121AG |
| Number of Leaves | 3/1/Wedge |
