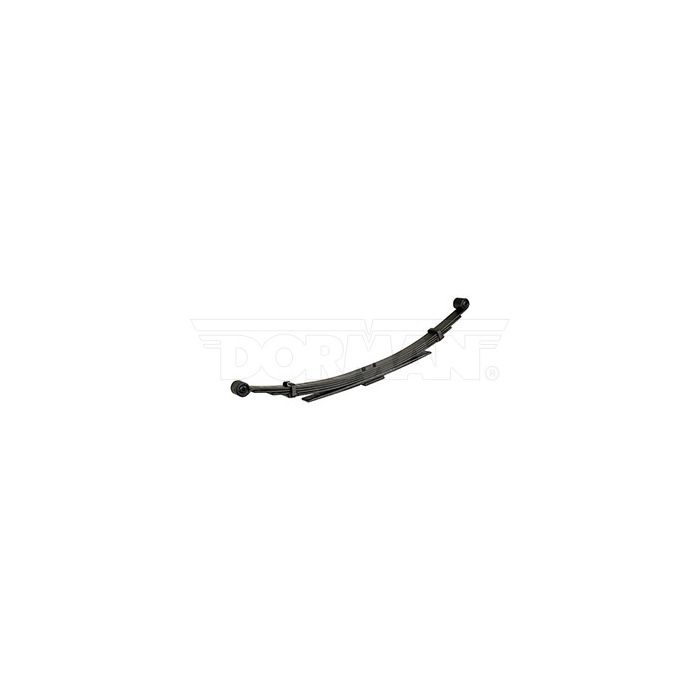

2006-2009 Dodge Ram 2500/Ram 3500 Leaf Spring | 34-1465HD
3,300 lbs. carrying capacity.
There is an OEM replacement version of this spring available: 34-1465.
There is an super heavy-duty version of this spring available: 34-1465SHD/a>.
Year: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Make: Dodge
Model: Ram 2500, Ram 3500
OEM Number: 52113320AF
Width 3 in.
PL-1 S.E. (A) 30 1/2 in.
PL-1 L.E. (B) 30 1/2 in.
Eye Type/Bushing S.E. Ber/RB-273
Eye Type/Bushing L.E. Std/RB-273
Arch (C) 6 1/4 in.
Number of Leaves 4/1/PD
Grading 4/447 2ND 1/999 PD/590
Pack Thickness (D) 3 3/82 in.
Spring Capacity at Pad 3,300 lbs.
Remarks 2WD or 4WD; Two stage; Replaces Dayton similar design in pairs
Sold individually.
Upgrade Your Dodge Ram 2500's Performance with the Superior 34-1465HD Leaf Springs.
Elevate the performance of your heavy-duty vehicles with our exceptional 34-1465HD leaf springs, crafted from premium American steel. These essential components are designed to provide optimal support and suspension, ensuring peak operation for your Dodge Ram 2500 trucks under even the most demanding conditions.
Meticulously manufactured with unwavering precision, our leaf springs consistently meet the highest quality standards. Engineered to withstand the toughest road conditions, you can trust in their reliability and longevity.
Not sure if our leaf springs will fit your vehicle? Our team of experts is here to assist you! Whether you need guidance on finding the perfect fit or have specific questions about their performance, we're just a call or email away. Reach out to us at 1-800-922-3283 or store.superiorspring@gmail.com.
At Superior Spring, we take immense pride in offering top-tier products that exceed industry expectations. Choose our high-quality leaf springs, proudly made right here in America, for unmatched performance and dependability. And remember, when replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading, preventing the u-bolt from being adequately re-torqued.
| Model | Ram 2500 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 3300 |
| Number of Leaves | 2/PD |
