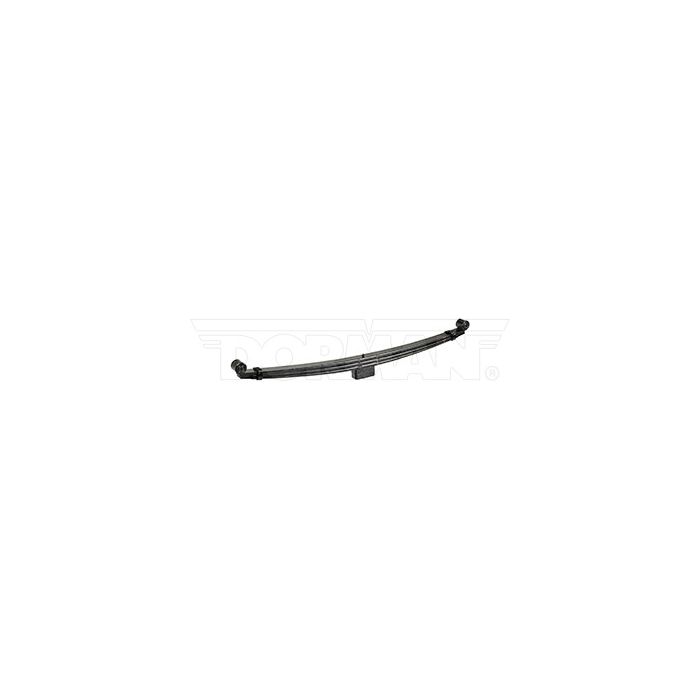

1996-2016 Chevrolet / GMC G1500/G2500/G3500 Express/Savanna Leaf Springs | 22-1175

Year: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Make: Chevrolet
Model: G1500 Express, G1500 Savanna, G2500 Express, G2500 Savanna, G3500 Express, G3500 Savanna
Part Number 22-1175
OEM Number 22132577
Width 2.5 in.
PL-1SE (A) 30 in.
PL-1LE (BE) 30 in.
Eye Type/Bushing S.E. Ber/RB-172
Eye Type/Bushing L.E. Ber/RB-172
Arch (C) 3.75 in.
Grading 3/840 PD/2.375, Full taper
Number of Leaves 3/1
Pack Thickness (D) 5.1875 in.
Capacity 3710 lbs.
Remarks Sold individually.

Experience unparalleled durability and performance with the 22-1175 leaf springs. Meticulously crafted from 100% American steel, these essential components are custom-designed to deliver optimal support and suspension for a precise fit with your heavy-duty Chevrolet G1500 trucks from 1996 to 2016.

Engineered with unwavering precision and manufactured to meet the highest quality standards, our leaf springs can withstand even the most challenging road conditions. Rigorous quality control checks ensure their reliability and longevity, providing you with peace of mind that they'll go the distance.

Our team of experts is committed to delivering exceptional service. If you have any inquiries about which type of leaf spring would be best for your vehicle or if you want more information on their performance, don't hesitate to reach out. We're here for all your needs at 1-800-922-3283 or store.superiorspring@gmail.com.

When it comes to offering top-tier products that exceed industry benchmarks, we take immense pride in what we do. Choose our high-quality leaf springs, proudly made in North America and specifically designed for your Chevrolet G1500 vehicles—ensuring that, no matter how demanding the conditions may get, your vehicles will always operate at peak performance levels.

Important note: When replacing leaf springs, be aware that the removed u-bolts cannot be reused.

Suspension u-bolts feature a smooth rolled thread, while the mating hi-nuts are crafted with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they engage with the hi-nuts. Although this damage may not always be visible to the naked eye, it compromises the threads. Removing the hi-nuts from the u-bolt may result in cross-threading, preventing the u-bolt from being adequately re-torqued.Chevy 221175 22 1175
