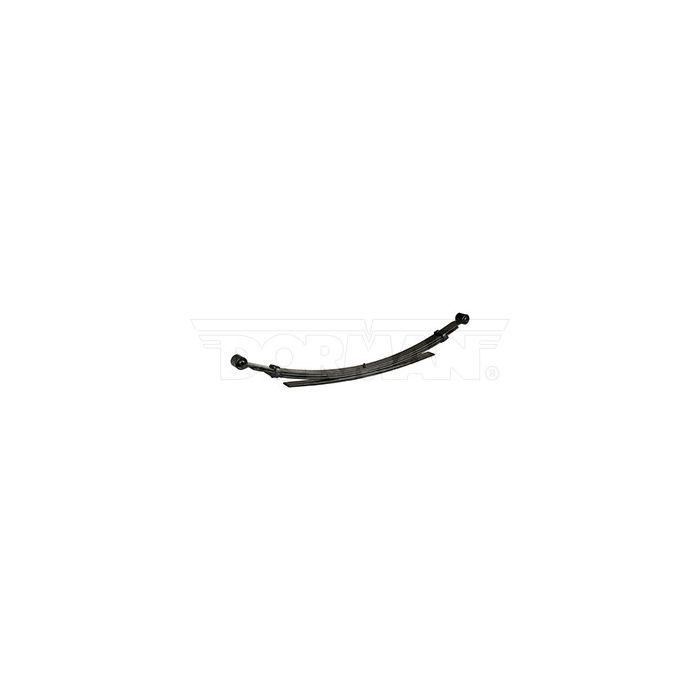

1996-2016 Chevrolet / GMC G10/G20/G30/G1500/G2500/G3500 Leaf Springs | 22-1167

This item is OUT OF STOCK. However, there is another spring which fits the same application: the 22-1167.
Year 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Make: Chevrolet
Model: G10, G20, G30, G1500, G2500, G3500
Part Number 22-1167
OEM Number 22132573
Width 2.5 in.
PL-1SE (A) 30 in.
PL-1LE (BE) 30 in.
Eye Type/Bushing S.E. Ber/RB-172
Eye Type/Bushing L.E. Ber/RB-172
Arch (C) 6.5 in.
Grading 1/380 1/401 1/423 2ND 1/941
Number of Leaves 3/1
Pack Thickness (D) 2.5 in.
Capacity 2240 lbs.
Remarks Two stage. Sold individually.

Presenting the Superior 22-1167 Leaf Springs: Unrivaled Durability and Precision-Crafted Performance.

Are you weary of contending with worn-out leaf springs that fall short in providing optimal support for your heavy-duty Chevrolet G10 trucks? Your solution is here! Our leaf springs, meticulously crafted from 100% American steel, are expertly designed to deliver unparalleled durability, performance, and a precision fit from 1996 all the way through to 2016.

Recognizing the pivotal role of quality materials in suspension components, our leaf springs are meticulously crafted using only premium-grade American steel, ensuring maximum strength and resilience against even the most challenging road conditions. With meticulous attention paid to each step of manufacturing, rest assured that these essential components meet, if not surpass, industry-leading standards in terms of reliability and longevity.

You don't need to navigate this purchase alone; our knowledgeable team is here every step of the way, ready to assist with any inquiries or concerns about applying these top-tier leaf springs to your vehicle and determining compatibility issues if they arise. Contact us via phone at +1 (800) 922-3283 or email us directly at store.superiorspring@gmail.com for personalized guidance tailored specifically to achieving an ideal fit between product performance specifications and the unique driving challenges set forth by Chevy G10s.

Experience peace of mind knowing that choosing Superior means selecting a company dedicated to offering superior products made right here within America's borders, consistently surpassing the expectations customers like yourself demand for their vehicles to operate at peak condition under demanding conditions day after grueling day. The search ends now—upgrade your experience today.

Important note: When replacing leaf springs, please be aware that the removed u-bolts cannot be reused.

Suspension u-bolts feature a smooth rolled thread, while the mating hi-nuts are crafted with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they engage with the hi-nuts. Although this damage may not always be visible to the naked eye, it compromises the threads. Removing the hi-nuts from the u-bolt may result in cross-threading, preventing the u-bolt from being adequately re-torqued.Chevy 221167 22 11667
