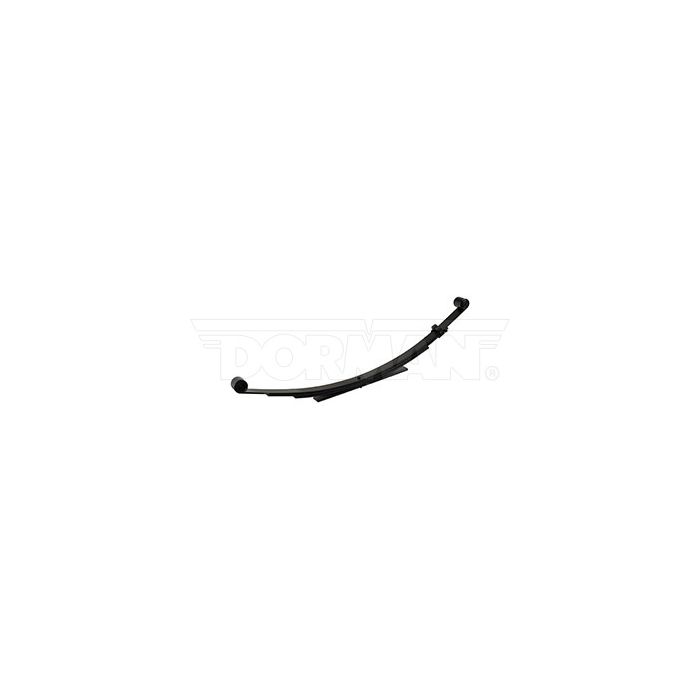

1995-2005 Chevrolet / GMC Blazer/Jimmy Leaf Springs | 22-1013
Secure online checkout
1,400 lbs. carrying capacity.
Year: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Make: Chevrolet
Model: Blazer, Jimmy
Part Number: 22-1013
OEM Number: 15689578
Width: 2.5 in.
PL-1SE (A): 24.5 in.
PL-1LE (BE): 27.5 in.
Eye Type/Bushing S.E.: Std/RB-231
Eye Type/Bushing L.E.: Std/RB-172
Arch (C): 6.875 in.
Grading: 1/323 2/307 2ND 1/447
Number of Leaves: 3/1
Pack Thickness (D): 1.625 in.
Capacity: 1,300 lbs.
Remarks: Two stage. Sold individually.
Experience unparalleled durability and performance with our 22-1013 leaf springs, meticulously crafted from 100% American steel. These essential components are custom-designed to offer optimal support and suspension, ensuring a precise fit for your heavy-duty vehicles, including the reliable Chevrolet Blazer trucks spanning from 1995 to 2005.
We take great pride in the precision engineering of our leaf springs, guaranteeing they meet the highest quality standards. Engineered to endure even the most challenging road conditions, you can trust in their reliability and long-lasting performance year after year.
Our team of experts is at your service, ready to assist you in finding the perfect fit for your vehicle or answering any performance-related questions. Connect with us today at 1-800-922-3283 or drop us an email at .
Confidently choose our top-tier leaf springs, consistently exceeding industry benchmarks. With our high-quality products proudly manufactured right here in North America, you'll ensure that your Chevrolet Blazer vehicles operate at their peak capability, no matter the demanding conditions.
Important note: When replacing leaf springs, please be aware that the removed u-bolts cannot be reused.
Suspension u-bolts are crafted with a smooth rolled thread, while the corresponding hi-nuts feature sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they engage with the hi-nuts. Although this damage may not always be visible to the naked eye, it can compromise the threads. Removing the hi-nuts from the u-bolt may lead to cross-threading, preventing the u-bolt from being adequately re-torqued.22 1013 221013 chevy
| Model | Blazer / Jimmy |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 1400 |
| OEM Number | 15689578 |
| Number of Leaves | 3/1 |
