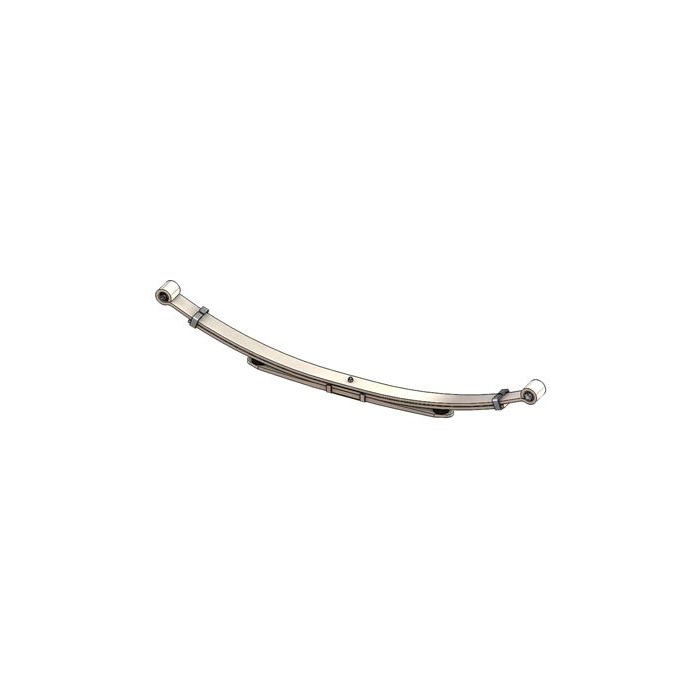

1973-1991 Chevrolet / GMC C30/C3500/K30/K3500/R30/R3500/V30/V3500 Leaf Springs | 501-139

Year: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Make: Chevrolet
Model: C30, C3500, K30, K3500, R30, R3500, V30, V3500
Width: 2.5 in.
PL-1 S.E. (A): 20.75 in.
PL-1 L.E. (B): 22.5 in.
Arch (C): 2.625 in.
Number of Leaves: 5
Grading: 6/323
Pack Thickness (D): 1.9375 in.
Spring Capacity at Pad: 1300 lbs.
Sold individually.

Introducing our 501-139 leaf springs: the ultimate solution for heavy-duty Chevrolet C3500 trucks. Crafted from premium American steel, these bad boys are built to endure anything that comes their way.

No compromise on quality here - each leaf spring is meticulously designed and manufactured with unwavering precision. We know you need a suspension system that can handle the toughest road conditions, which is why we put every product through rigorous quality control checks.

Not sure if these leaf springs are compatible with your truck? Don't worry! Our team of experts is always ready to assist you in finding the perfect fit or answer any questions about performance. Just give us a call at 1-800-922-3283 or shoot an email over to store.superiorspring@gmail.com.

When it comes down to it, there's one thing we guarantee: reliability and longevity like no other. Our top-tier leaf springs consistently exceed industry standards because we take immense pride in what we do and where they come from proudly made right here in America!

Get ready for peak performance even under the most demanding conditions by choosing our high-quality North America-made UNMBO603NQXPWG tags as replacements.

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
