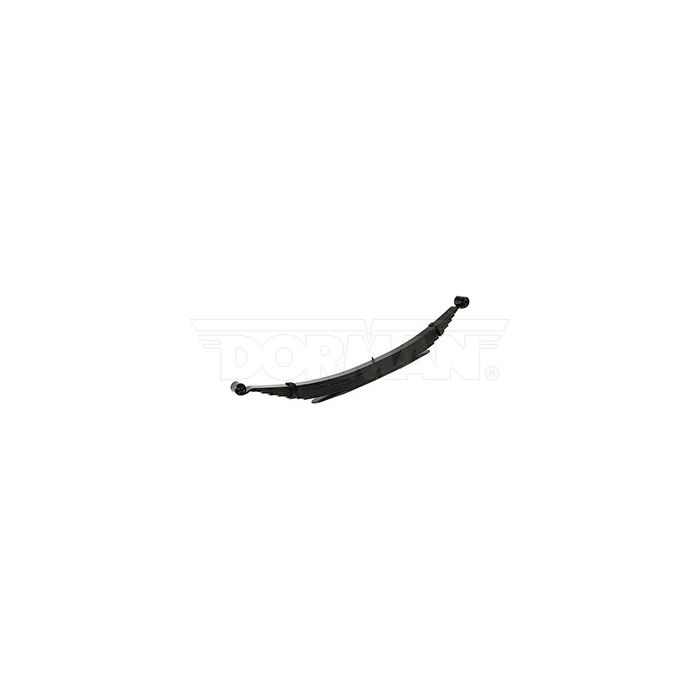

1973-1987 Chevrolet / GMC C10/C1500/C20/C2500/C30/C3500/R10/R1500/R20/R2500/R30/R3500 Leaf Springs | 22-547HD

Year: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Make: Chevrolet
Model: C10, C1500, C20, C2500, C30, C3500, R10, R1500, R20, R2500, R30, R3500
Part Number 22-547HD
Width 2.5 in.
PL-1SE (A) 26 in.
PL-1LE (BE) 30 in.
Eye Type/Bushing S.E. Ber/RB-136
Eye Type/Bushing L.E. Ber/RB-117
Arch (C) 5.5 in.
Grading 8/360 2ND 1/770
Number of Leaves 8/1
Pack Thickness (D) 3.625 in.
Capacity 3500 lbs.
Remarks Two stage; Replaces Dallas similar design in pairs Sold individually.

Experience unparalleled strength and performance with our 22-547HD leaf springs. Crafted from premium American steel, these essential components are the epitome of durability.

Engineered to provide optimal support and suspension, our leaf springs offer a precise fit for heavy-duty Chevrolet C1500 trucks manufactured between 1973 and 1987. Say goodbye to sagging suspensions or uneven weight distribution - our products deliver unmatched stability on every road.

No compromises were made in their manufacturing process; each spring is meticulously crafted with unwavering precision while adhering to strict quality standards. Rest easy knowing that your investment will withstand even the harshest conditions thanks to rigorous quality control checks during production.

Should you have any questions regarding application or compatibility, don't fret! Our team of experts stands ready to assist you at every step along the way. From guiding you towards choosing the perfect fit for your vehicle's needs, they'll address all inquiries promptly and professionally. Contact us today at 1-800-922-3283 or shoot an email over concerns directly at store.superiorspring@gmail.com

We pride ourselves on consistently surpassing industry benchmarks when it comes down delivering top-tier leaf springs built right here in America ?Çö where craftsmanship meets excellence without compromise. Elevate your heavy-duty Chevrolet C1500 vehicles' capabilities by selecting high-quality leaf springs produced locally?Çö peace-of-mind ensured no matter what challenges lie ahead.

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.Chevy
