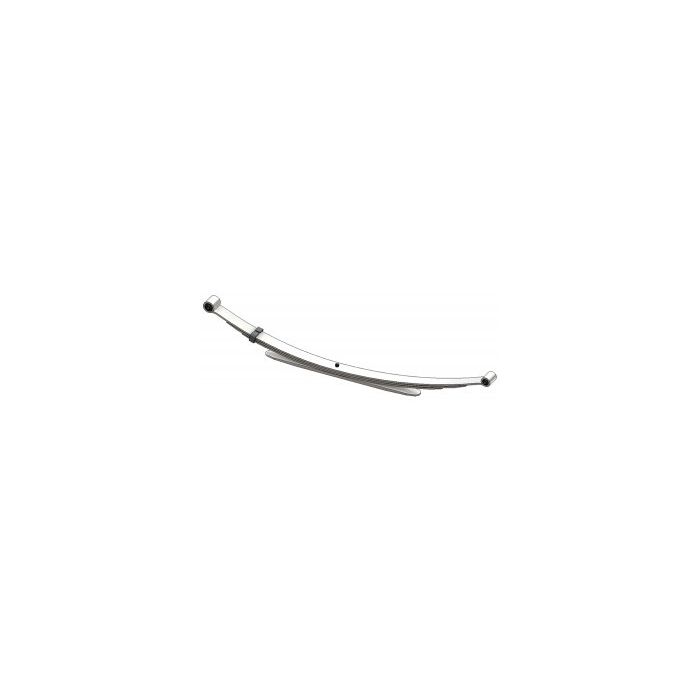

2000-2006 Toyota Tundra Leaf Spring | 90-243

2000, 2001, 2002, 2003, 2004, 2005, 2006
Make: Toyota
Model: Tundra
OEM Number: 48210-AF092
Width: 2 3/8 in. (60mm)
PL-1 S.E. (A): 28 9/16 in.
PL-1 L.E. (B): 31 7/8 in.
Eye Type/Bushing S.E.: Std/RB-260
Eye Type/Bushing L.E.: Std/RB-260
Arch (C): 7 in.
Number of Leaves: 3/1
Grading: 2/10 1/9.5 2ND 1/20
Pack Thickness (D): 2 in.
Remarks: Right; 2004-2006 Double cab: Off Road Package

Sold individually.

Our 90-243 leaf springs are the ultimate choice for heavy-duty Toyota Tundra (2WD) trucks manufactured between 2000-2006. Made from premium-quality American steel, they offer unparalleled durability and performance while providing optimal suspension support.

Each spring is crafted with precision to meet the highest quality standards, ensuring your vehicle can withstand some of the toughest road conditions out there. Our rigorous quality control checks guarantee that our products will last longer than other options on the market.

If you're unsure which product suits your specific needs or have any questions about their performance, we've got you covered! Our team of experts is always available at 1-800-922-3283 or via email at store.superiorspring@gmail.com. We pride ourselves in delivering exceptional customer service and helping clients make informed decisions based on their unique requirements.

When it comes to superior leaf springs made proudly in America, look no further than ours designed specifically for Heavy-Duty Toyota Tundras operating flawlessly even under harsh driving conditions!

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
