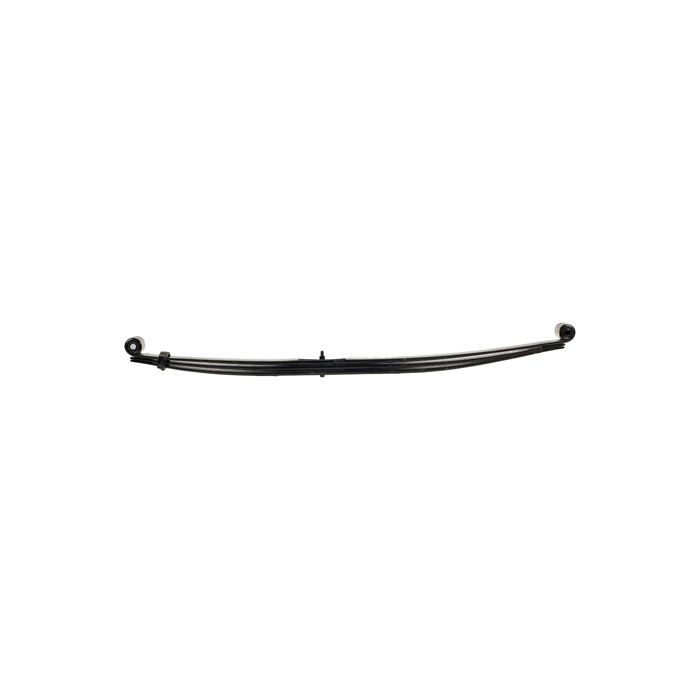

2007-2012 Ford E150 Leaf Springs | 43-1045
3,450 lbs. carrying capacity.
Year: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Make: Ford
Model: E150
OEM Number: F2UZ5560G / F2UA5560KE
Width 3 in.
PL-1 S.E. (A) 23 7/8 in.
PL-1 L.E. (B) 31 in.
Eye Type/Bushing S.E. Std/RB-198
Eye Type/Bushing L.E. Std/RB-157
Arch (C) 2 1/2 in.
Number of Leaves 3
Grading 3/625, Full taper
Pack Thickness (D) 1 15/16 in.
Spring Capacity at Pad 3,450 lbs.
Sold individually.
Upgrade your Ford E150 with Superior 43-1045 Leaf Springs!
Experience unmatched durability and performance with our 43-1045 leaf springs, made from 100% American steel. Engineered to perfection, these essential components provide optimal support and suspension for a precise fit in your heavy-duty vehicles, such as the Ford E150 trucks from 2007 to 2012.
Crafted with unwavering precision and meeting the highest quality standards, our leaf springs are built tough to tackle even the harshest road conditions. Count on their reliability and longevity thanks to rigorous quality control checks throughout every step of manufacturing.
Got questions about applications or compatibility? Our team of experts is always here for you! Whether you need guidance on finding the perfect fit for your vehicle or have specific queries regarding performance - we've got it covered. Reach out at any time through phone (1-800-922-3283) or email (store.superiorspring@gmail.com).
Choosing us means choosing excellence. We take immense pride in offering top-tier leaf springs that consistently surpass industry benchmarks. By opting for our high-quality products proudly manufactured right here in North America, you'll ensure your heavy-duty Ford E150 vehicles operate at peak efficiency - no matter how demanding the conditions may be.
When replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
| Model | E150 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 3450 |
| OEM Number | F2UZ5560G, F2UA5560KE |
| Number of Leaves | 1 |
