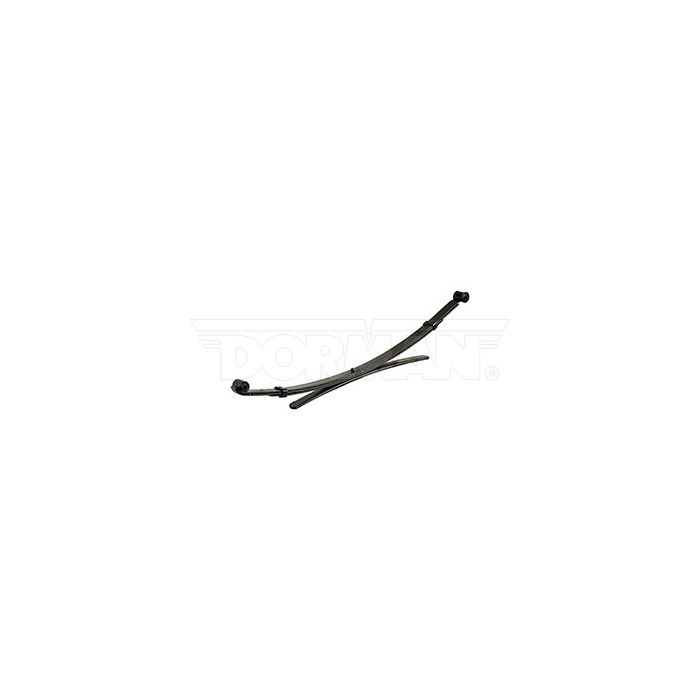

2001-2004 Toyota Tacoma 4WD Leaf Spring | 90-237

Year: 2001, 2002, 2003, 204
Make: Toyota
Model: Tacoma
OEM Number: 48210-04330
Width: 2 3/8 in. (60mm)
PL-1 S.E. (A): 24.125 in.
PL-1 L.E. (B): 31.125 in.
Eye Type/Bushing S.E.: Std/RB-192
Eye Type/Bushing L.E.: Ber/RB-260
Arch (C): 5.875 in.
Number of Leaves: 3/1
Grading: 1/7 1/8 1/7 2ND 1/18
Pack Thickness (D): 1.625 in.
Remarks: Left; Extra cab.
Sold individually.

Looking for leaf springs that stand the test of time? Look no further! Crafted from 100% American steel, our top-of-the-line 90-237 leaf springs are built to deliver unparalleled durability and performance. Specially designed to provide optimal support and suspension, these leaf springs offer a precise fit for heavy-duty Toyota Tacoma trucks manufactured between 2001 and 2004.

When it comes to quality, we leave no room for compromise. Our engineers have poured their expertise into every detail of these exceptional leaf springs. Meticulously manufactured with unwavering precision, each spring undergoes rigorous testing under the highest industry standards - all in pursuit of excellence.

Hit the road knowing your vehicle is equipped with leaf springs engineered to conquer any challenge thrown at them. From rugged terrains to unforgiving conditions, you can count on our sturdy construction and reliable design.

Have questions about compatibility or need guidance finding the right fit? Don't worry; our team of experts has got your back! We pride ourselves on providing unmatched customer service when it comes to selecting the perfect products for your needs. Reach out today via phone at {phone number} or email us at {email address}.

Don't settle for subpar substitutes choose superior quality made in America! Trust our high-quality North America-manufactured leaf sprigs specifically tailored for heavy-duty Toyota Tacoma trucks produced between '01-'04, and ensure

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
