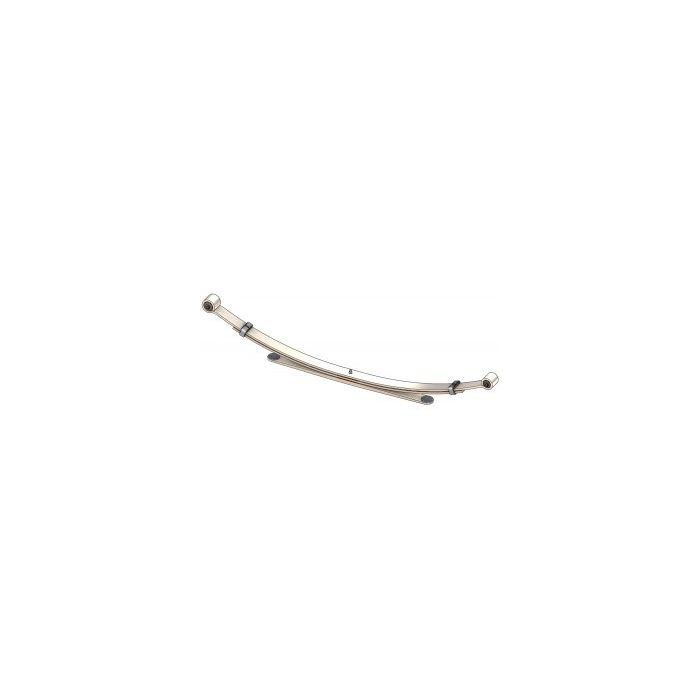

2001-2004 Toyota Tacoma 2WD Leaf Spring | 90-255

Year: 2001, 2002, 2003, 2004
Make: Toyota
Model: Tacoma
OEM Number: 48210-04210
Width: 2 3/8 in. (60mm)
PL-1 S.E. (A): 24.125 in.
PL-1 L.E. (B): 31.125 in.
Eye Type/Bushing S.E.: Ber/RB-192
Eye Type/Bushing L.E.: Std/RB-260
Arch (C): 6.625 in.
Number of Leaves: 2/1
Grading: 1/8 1/9 2ND 1/18
Pack Thickness (D): 1 7/16 in.
Remarks: Right; Regular cab.
Sold individually.

Experience the unmatched durability and performance of our 90-255 leaf springs. Crafted from 100% American steel, these tailor-made springs provide optimal support and suspension for a precise fit with your heavy-duty Toyota Tacoma trucks from 2001 to 2004.

Precision manufacturing meets rigorous quality standards in every step of the production process. Engineered to withstand even the harshest road conditions, our leaf springs are built to last. Rest assured that their reliability and longevity have been thoroughly tested through stringent quality control checks.

We understand that finding the right fit can be confusing at times. That's why our team of experts is always here to assist you with any questions or concerns you may have about applications or compatibility issues regarding leaf spring replacement on your vehicle. Simply reach out by calling us at 1-800-922-3283 or sending an email directly to store.superiorspring@gmail.com we're ready and eager to help!

At Superior Spring, it's not just about meeting industry benchmarks; it's exceeding them consistently! We take immense pride in offering top-tier products proudly manufactured right here in America. Our high-quality leaf springs will ensure that your heavy-duty Toyota Tacoma vehicles perform at their peak levels under any circumstances - even when faced with demanding terrain.

Don't settle for anything less than exceptional quality: choose Superior Springs Leaf Springs today.

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
