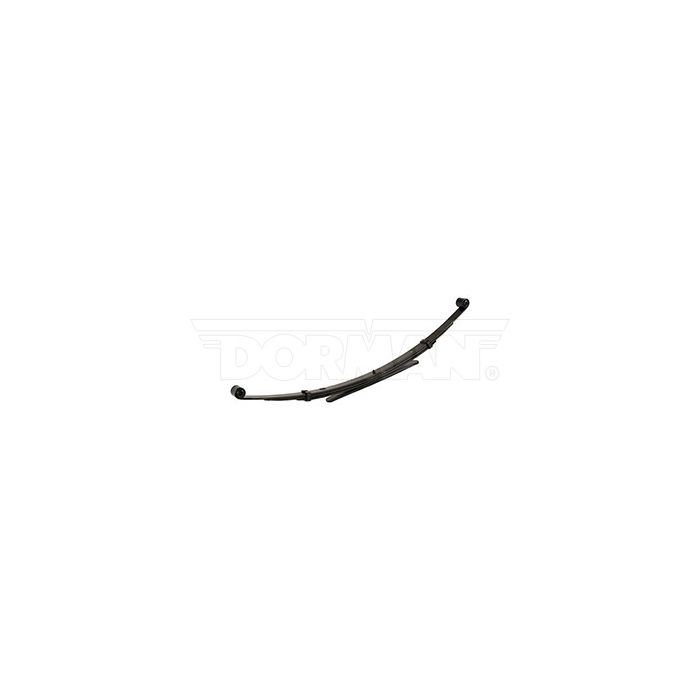

2000-2006 Toyota Tundra Double Cab 4WD Leaf Spring | 90-247

Year: 2000, 2001, 2002, 2003, 2004, 2005, 2006
Make: Toyota
Model: Tundra
OEM Number: 48220-AF082
Width: 2 3/8 in. (60mm)
PL-1 S.E. (A): 28 9/16 in.
PL-1 L.E. (B): 31.875 in.
Eye Type/Bushing S.E.: Std/RB-260
Eye Type/Bushing L.E.: Std/RB-260
Arch (C): 7.5 in.
Number of Leaves: 3/1
Grading: 1/9.5 2/10 2ND 1/20
Pack Thickness (D): 2 in.
Remarks: Left; 2004-2006 Double cab.
Sold individually.

Experience peak performance and unmatched durability with the 90-247 leaf springs. Crafted from 100% American steel, these springs are tailor-made to support your heavy-duty Toyota Tundra trucks from 2000-2006.

With unwavering precision and rigorous quality control checks, our leaf springs are built to withstand even the harshest road conditions. You can trust in their reliability and longevity for years to come.

Need help finding the perfect fit or have questions about their performance? Our team of experts is here to assist you every step of the way. Reach out at 1-800-922-3283 or email us at store.superiorspring@gmail.com.

Don't settle for anything less than superior quality. Choose our high-quality leaf springs proudly manufactured in the North America, ensuring optimal operation for your heavy-duty Toyota Tundras. Experience excellence on every journey; choose Superior Spring today!

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
