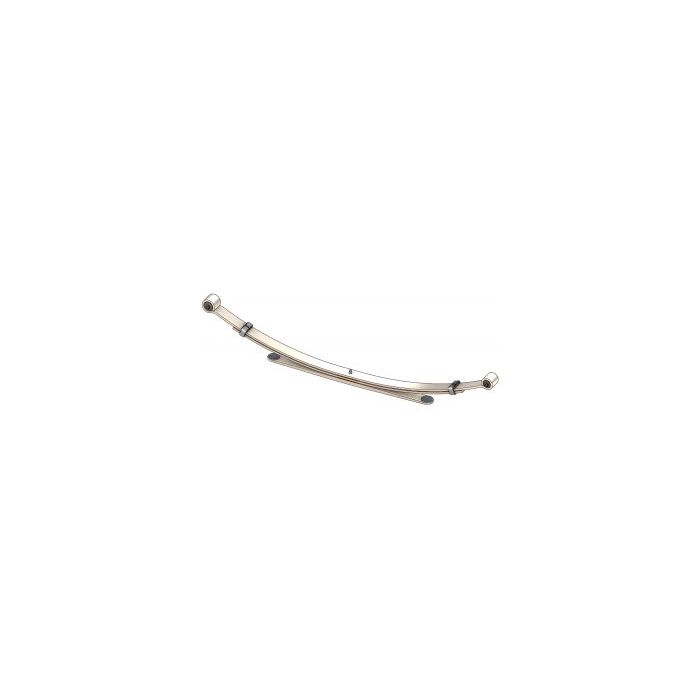

2005-2011 Toyota Tundra 2WD Leaf Spring | 90-293HD

Year: 2005, 2006, 2007, 2008, 2009, 2010, 2011
Make: Toyota
Model: Tundra
Width: 2 3/8 in.(60 mm)
PL-1 S.E. (A): 27 9/16 in.
PL-1 L.E. (B): 27 9/1 in.6
Eye Type/Bushing S.E.: Ber/RB-294
Eye Type/Bushing L.E.: Ber/RB-260
Arch (C): 7 3/4 in.
Number of Leaves: 3/1
Grading: 3/9 2ND 1/20
Pack Thickness (D): 1 7/8 in.
Remarks: Both; Heavy Duty; Except for X-Runner
Sold individually.

Experience the unmatched durability and performance of our 90-293HD leaf springs, crafted from 100% American steel. Made specifically for heavy-duty Toyota Tundra trucks from 2005 to 2011, these essential components provide optimal support and suspension with a precision fit.

With unwavering precision manufacturing techniques and strict quality control checks, our leaf springs are built to withstand even the harshest road conditions. You can trust in their reliability and longevity without compromise.

Have questions about which leaf spring is right for your vehicle? Our team of knowledgeable experts is here to help! We pride ourselves on offering top-tier customer service that goes above industry standards. Contact us today at store.superiorspring@gmail.com or call us at 1-800-922-3283 we're always available to assist you!

Choose high-quality leaf springs proudly manufactured in the North America by Superior Spring for unrivaled performance in your heavy-duty Toyota Tundra vehicles.

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
