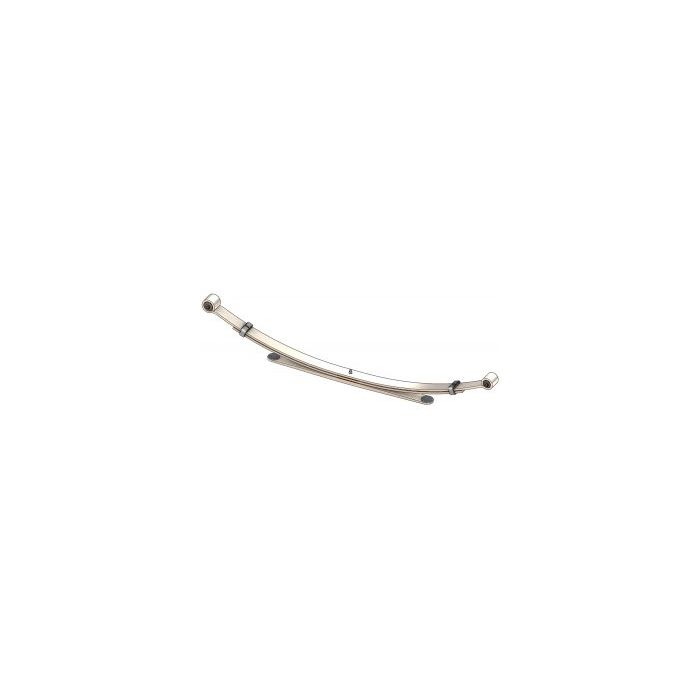

2005-2011 Toyota Tacoma 4WD Leaf Spring | 90-573

Year:2005, 2006, 2007, 2008, 2009, 2010, 2011
Make: Toyota
Model: Tacoma
OEM Number: 48220-04640
Width: 2 3/8 in. (60 mm)
PL-1 S.E. (A): 27 9/16 in.
PL-1 L.E. (B): 27 9/16 in.
Eye Type/Bushing S.E.: Std/RB-294
Eye Type/Bushing L.E.: Std/RB-260
Arch (C):6 1/4 in.
Number of Leaves: 3/1
Grading:2/7 1/8 2ND 1/17
Pack Thickness (D): 1 5/8 in.
Remarks:Right; Installed durin 2016 recall; Regular cab
Sold individually.

Experience unmatched durability and performance with our 90-573 leaf springs. Crafted from 100% American steel, these heavy-duty springs are tailor-made to provide optimal support and suspension for Toyota Tacoma trucks from 2005 to 2011.

Precision-engineered to meet the highest quality standards, our leaf springs are built tough to withstand even the harshest road conditions. We leave no room for compromise when it comes to reliability and longevity as each spring undergoes rigorous quality control checks.

Have questions about which leaf spring is right for your vehicle? Our team of experts is here to help! From compatibility concerns to performance inquiries, we've got you covered. Reach out at any time via phone on 1-800-922-$3283 or email us at store.superiorspring@gmail.com

We take immense pride in offering industry-leading products that consistently surpass expectations. With our high-quality leaf springs proudly manufactured in North America, rest assured that your heavy-duty Toyota Tacoma vehicles will perform flawlessly even under demanding circumstances.

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
