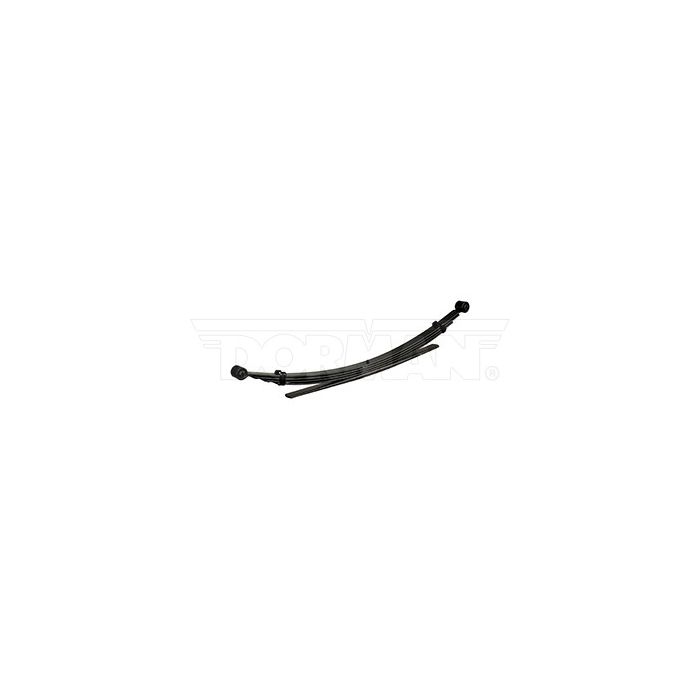

1999-2013 Chevrolet / GMC Sierra/Silverado 1500/2500 Leaf Springs | 22-1269

Year: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
Make: Chevrolet
Model: Sierra 1500, Silverado 1500, Sierra 2500, Silverado 2500
Part Number 22-1269
OEM Number 15711753
Width 2.5 in.
PL-1SE (A) 32 in.
PL-1LE (BE) 32 in.
Eye Type/Bushing S.E. Ber/RB-250
Eye Type/Bushing L.E. Ber/RB-172
Arch (C) 6.5 in.
Grading 1/401 2/360 1/380 2ND 1/938
Number of Leaves 4/1
Pack Thickness (D) 2.75 in.
Capacity 2025 lbs.
Remarks Two stage; 3/8 in. Center bolt.

Available for purchase individually, we present the 22-1269 – the epitome of durability and performance. Crafted from 100% American steel, these exceptional leaf springs are meticulously engineered to provide unrivaled support and suspension for heavy-duty vehicles, including your trusty Chevrolet Silverado 1500 trucks (model years: 1999-2013).

When it comes to quality, corners are not cut. Our team goes above and beyond to manufacture these leaf springs with unwavering precision, strictly adhering to the highest industry standards. This ensures their ability to conquer even the roughest terrains without compromising on reliability or longevity.

However, our commitment doesn't stop at delivering top-notch products — we're here for you every step of the way. Whether you need expert advice on selecting a compatible fit or have specific inquiries about performance capabilities, rest assured that our knowledgeable professionals stand ready to assist you in any way they can.

Remember, when replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading that will not allow the u-bolt to be adequately re-torqued.Chevy 221269 22 1269
