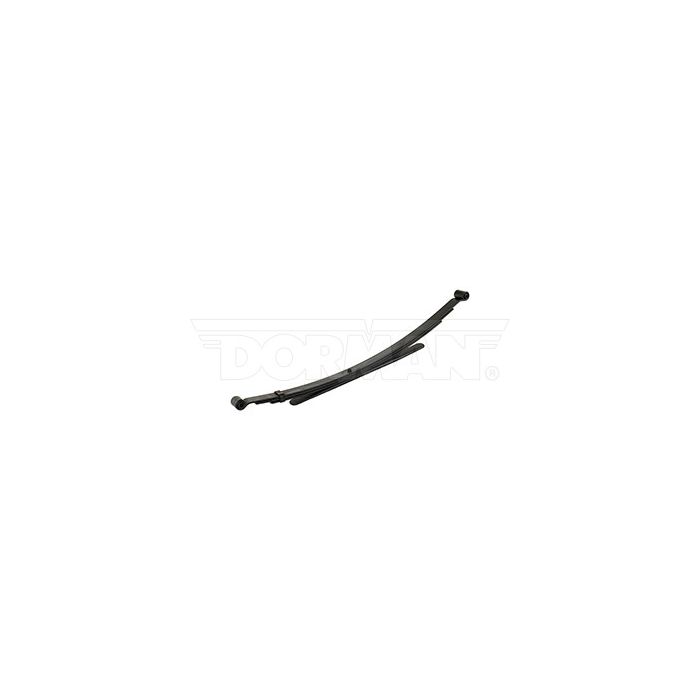

2007-2012 Ford E150 Leaf Springs | 43-1153
2,350 lbs. carrying capacity.
Year: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Make: Ford
Model: E150
OEM Number: F5UZ5560B / F5UA5560PA
Width 3 in.
PL-1 S.E. (A) 23 7/8 in.
PL-1 L.E. (B) 31 in.
Eye Type/Bushing S.E. Ber/RB-198
Eye Type/Bushing L.E. Ber/RB-157
Arch (C) 3 7/8 in.
Number of Leaves 3/1
Grading 1/323 2/341 2ND 1/660
Pack Thickness (D) 1 7/8 in.
Spring Capacity at Pad 2,350 lbs.
Remarks Two stage
Sold individually.
Superior Performance Leaf Springs for Ford E150 Trucks.
Upgrade your heavy-duty vehicles with Superior 43-1153 Leaf Springs!
Experience unparalleled durability and performance with our 43-1153 leaf springs, expertly crafted from 100% American steel. These essential components are tailor-made to provide optimal support and suspension, delivering a precise fit for your heavy-duty vehicles.
Designed with unwavering precision and manufactured to meet the highest quality standards, our leaf springs can withstand even the harshest road conditions. Rigorous quality control checks ensure their reliability and longevity so you can hit the roads with confidence.
Our team of experts is here to assist you every step of the way. Whether you need guidance on finding the perfect fit or have specific questions about performance capabilities, we're just one call or email away. Reach out now at 1-800-922-3283 or store.superiorspring@gmail.com.
At Superior Spring, excellence is ingrained in everything we do. We take immense pride in offering top-tier products that consistently surpass industry benchmarks—our high-quality leaf springs proudly made right here in America guarantee peak operation for your heavy-duty Ford E150 trucks under any circumstances.
When replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading that will not allow the u-bolt to be adequately re-torqued.
| Model | E150 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 2350 |
| OEM Number | F5UZ5560B, F5UA5560PA |
