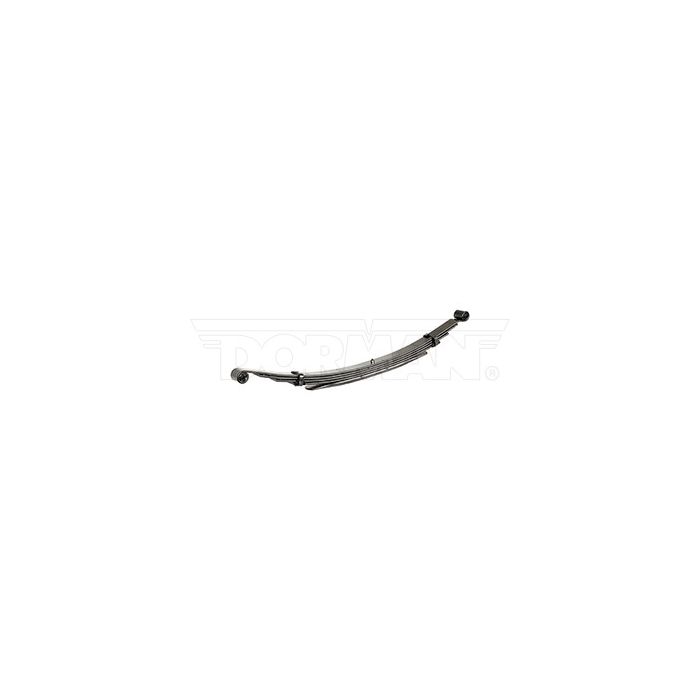

1994-2002 Dodge Ram 1500/Ram 2500 4WD Leaf Springs | 34-1343HD
Secure online checkout
3,600 lbs. carrying capacity.
There is an OEM replacement version of this spring available: 34-1343.
Year: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Make: Dodge
Model: Ram 2500, Ram 3500
Width 3 in.
PL-1 S.E. (A) 28 in.
PL-1 L.E. (B) 32 in.
Eye Type/Bushing S.E. Ber/RB-213*
Eye Type/Bushing L.E. Rev/RB-213*
Arch (C) 5 in.
Number of Leaves 4/1
Grading 4/447 2ND 1/788
Pack Thickness (D) 2 9/16 in.
Spring Capacity at Pad 3,600 lbs.
Remarks Two stage; 2500 and 3500
* We substitute alternate bushings that cannot be used to replace the indicated OE.
Sold individually.
Discover the unbeatable strength and performance of our 34-1343HD leaf springs. Expertly crafted from premium American steel, these heavy-duty leaf springs are designed specifically for Dodge Ram 1500 trucks from 1994-2002.
With meticulous attention to detail and uncompromising quality standards, our leaf springs offer unmatched durability on any road. Every set undergoes rigorous testing to guarantee long-lasting reliability in even the toughest conditions.
Need help finding the perfect fit or have questions about performance? Our team of knowledgeable professionals is ready to assist you every step of the way. Contact us at store.superiorspring@gmail.com or dial 1-800-922-3283 for expert guidance and support.
When it comes to superior craftsmanship, we take immense pride in producing industry-leading products that exceed expectations time after time. Opt for our high-quality American-made leaf springs today and ensure your heavy-duty Dodge Ram truck operates flawlessly - no matter how demanding the journey may be.
Important note: When replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading that will not allow the u-bolt to be adequately re-torqued.
| Model | Ram 1500 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 3600 |
| Number of Leaves | 3/1 |
