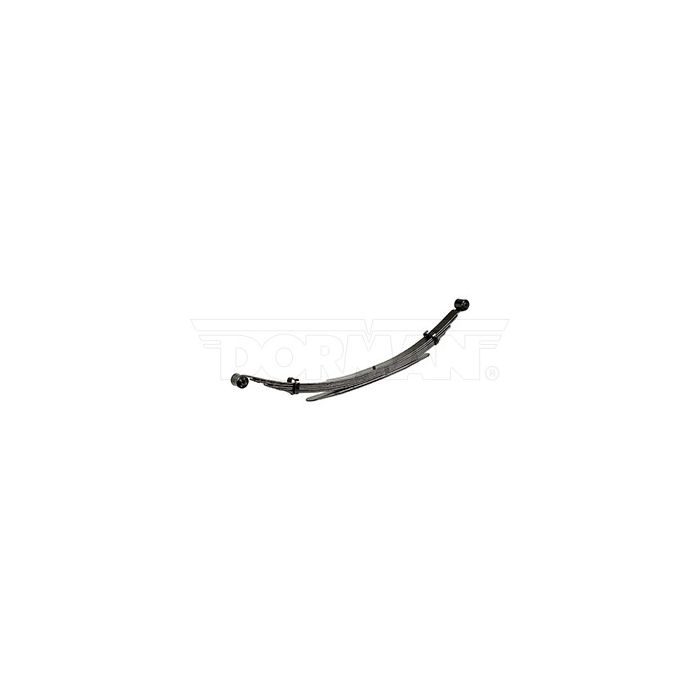

1994-2001 Dodge Ram 1500/Ram 2500 4WD Leaf Springs | 34-1339HD
Secure online checkout
2,600 lbs. carrying capacity.
There is an OEM replacement version of this spring available: 34-1339.
Year: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Make: Dodge
Model: Ram 1500, Ram 2500
Width 2 1/2 in.
PL-1 S.E. (A) 27 7/8 in.
PL-1 L.E. (B) 32 1/8 in.
Eye Type/Bushing S.E. Ber/RB-224*
Eye Type/Bushing L.E. Rev/RB-224/1*
Arch (C) 6 7/16 in.
Number of Leaves 5/1
Grading 5/360 2ND 1/770
Pack Thickness (D) 2 11/16 in.
Spring Capacity at Pad 2,600 lbs.
Remarks Two stage; 2500
* We substitute alternate bushings that cannot be used to replace the indicated OE.
Sold individually.
Upgrade your heavy-duty Dodge Ram 1500 trucks from 1994 to 2001 with the unbeatable durability and performance of our premium leaf springs, forged entirely from top-grade American steel.
Experience enhanced support and suspension like never before with these tailor-made leaf springs. Crafted for a precise fit, they provide optimal stability on any terrain, giving you the confidence to tackle even the toughest road conditions.
Rest assured that every single one of our leaf springs is manufactured using cutting-edge technology and held to rigorous quality control standards. This ensures unrivaled reliability and longevity - meaning you can trust them to last season after season without compromise.
Need advice or have questions about compatibility? Count on our team of experts who are here round-the-clock for all your concerns regarding applications or performance details. Get in touch via phone at 1-800-922-3283 or shoot us an email at store.superiorspring@gmail.com today!
When it comes down to delivering exceptional products that surpass industry benchmarks, we take immense pride in what we offer. Selecting our high-quality North America-manufactured leaf springs guarantees peak operation for your heavy-duty Dodge Ram 1500 vehicles from '94-'01 under even the harshest conditions imaginable.
Important note: When replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removing the hi-nuts from the u-bolt will cause cross-threading that will not allow the u-bolt to be adequately re-torqued.
| Model | Ram 1500 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 2600 |
| Number of Leaves | 3/1 |
