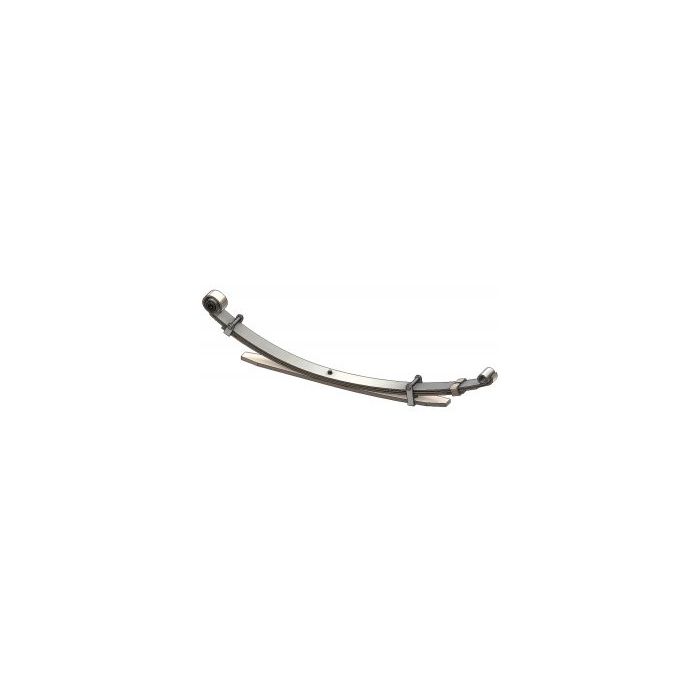

1979-1983 Toyota Pickup 4WD Leaf Spring | 90-124

Year: 1979, 1980, 1981, 1982, 1983
Make: Toyota
Model: Pickup (4WD)
OEM Number: 48120-35051
Width: 2 3/8 in. (60mm)
PL-1 S.E. (A): 22.75 in.
PL-1 L.E. (B): 22.75 in.
Eye Type/Bushing S.E.: Std/30
Eye Type/Bushing L.E.: Std/30
Arch (C): 2.375 in.
Number of Leaves: 4
Grading: 1/7 2/8 1/7
Pack Thickness (D): 1.1875 in.
Remarks: Left; 1/80 - 7/83

Sold individually.

Experience unmatched durability and performance with our 90-124 leaf springs, proudly crafted from 100% American steel. Engineered for heavy-duty Toyota Pickup (4WD) trucks made between 1979-1983, these precision-fit springs provide optimal support and suspension.

Rigorously manufactured to the highest quality standards, our leaf springs are built to withstand even the harshest road conditions. They undergo rigorous quality control checks to ensure reliability and longevity you can count on.

Have questions about compatibility or need guidance on finding the right fit? Our team of experts is here to help! Reach out via phone at 1-800-922-3283 or email us at store.superiorspring@gmail.com for personalized assistance.

When it comes to top-tier leaf springs that go above industry benchmarks, we take immense pride in delivering nothing but excellence. Choose superior-quality leaf springs proudly made in the North America for your heavy-duty Toyota Pickup (4WD), ensuring peak performance no matter how demanding your endeavors may be.

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
