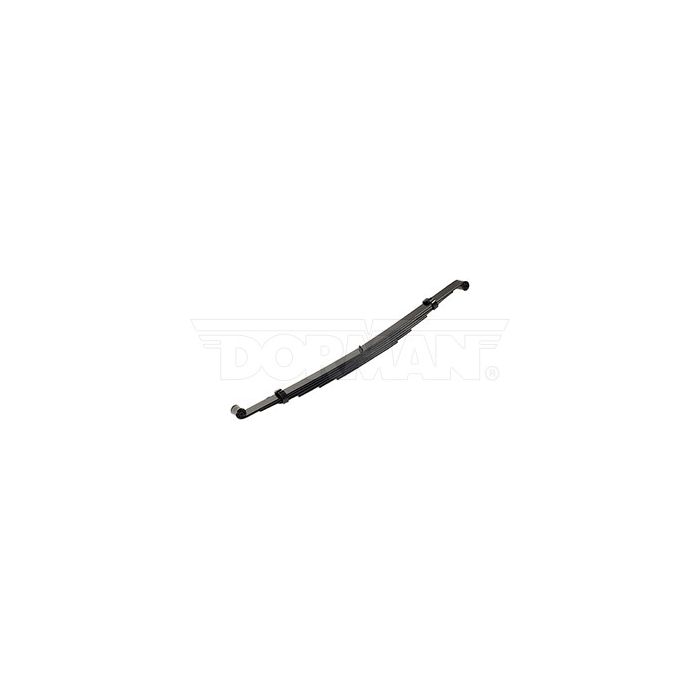

1972-1991 Dodge W100/W150/W200/W250/W300/W350 Leaf Spring | 34-774
Secure online checkout
1,900 lbs. carrying capacity.
Year: 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Make: Dodge
Model: W100, E150, W200, W250, W300, W350
OEM Number: 3821852
Width 2 1/2 in.
PL-1 S.E. (A) 24 in.
PL-1 L.E. (B) 24 in.
Eye Type/Bushing S.E. Std/RB-57
Eye Type/Bushing L.E. Rev/RB-57
Arch (C) 1 1/4 in.
Number of Leaves 6
Grading 6/360
Pack Thickness (D) 2 3/16 in.
Spring Capacity at Pad 1,900 lbs.
Sold individually.
Experience unmatched durability and performance with the 34-774 leaf springs, meticulously crafted from premium American steel. These essential components are expertly designed to provide optimal support and suspension for a perfect fit on your heavy-duty vehicles like the legendary Dodge W100 trucks manufactured between 1972 and 1991.
Our commitment to excellence is evident in every aspect of our manufacturing process. Using state-of-the-art techniques combined with unwavering precision, we engineer these leaf springs to withstand even the harshest road conditions you may encounter. Rigorous quality control checks ensure that each spring meets our exacting standards, guaranteeing their reliability and longevity beyond compare.
We understand that selecting the right parts for your vehicle can sometimes feel overwhelming. That's why our team of experts stands ready to assist you at every step. Whether you need guidance on choosing the correct fit or have specific questions about how these leaf springs will enhance your vehicle's performance, trust our knowledgeable professionals who are just one call away at 1-800-922-3283 or reach out via email at store.superiorspring@gmail.com.
Here at Superior Spring, we take immense pride in offering top-tier products that continually surpass industry benchmarks - something truly exceptional sets us apart!
When replacing leaf springs, the removed u-bolts cannot be reused.
Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
| Model | W100 |
|---|---|
| Vehicle Option | - |
| Capacity lbs | 1900 |
| OEM Number | 3821852 |
| Number of Leaves | 3/1 |
