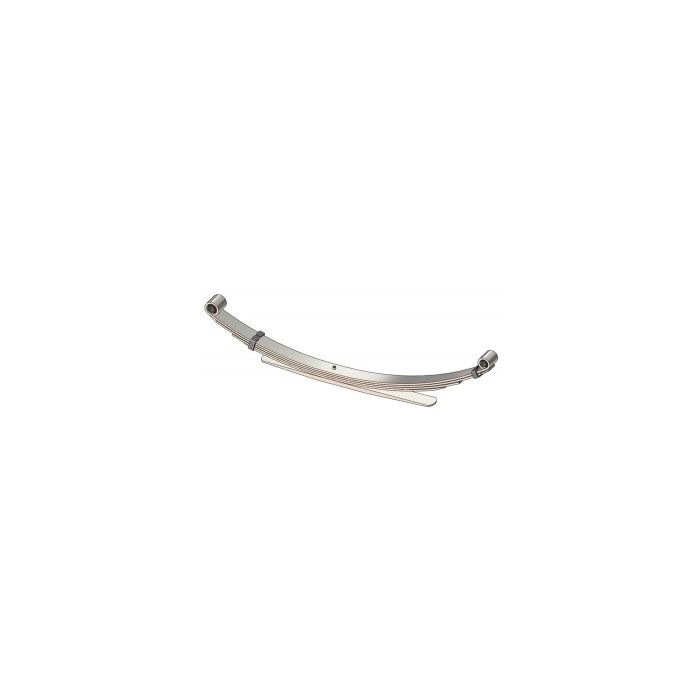

1961-1972 Ford F100 4WD Leaf Springs | 43-449

Year: 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make: Ford
Model: F100
OEM Number: C6TZ5560M, C6TA5560U
Width: 2.25 in.
PL-1 S.E. (A): 24 in.
PL-1 L.E. (B): 28 in.
Eye Type/Bushing S.E.: Std/RB-70
Eye Type/Bushing L.E.: Std/RB-70
Arch (C): 7.375 in.
Number of Leaves: 5/1
Grading: 1/291 2/262 2/237 2ND 1/625
Pack Thickness (D): 1.9375 in.
Spring Capacity at Pad: 1250 lbs.
Remarks: Two stage.
Sold individually.

Introducing the 43-449 Leaf Springs: Unmatched Durability and Precision Performance for Your Ford F100 Trucks from 1961-1972

Crafted with unwavering precision using premium American steel, our 43-449 leaf springs guarantee unbeatable durability and performance. Engineered to provide optimal support and suspension, these essential components are tailor-made for a precise fit with a wide range of heavy-duty Ford F100 trucks.

When it comes to quality, we leave no room for compromise. Our leaf springs undergo rigorous manufacturing processes that meet the highest industry standards. We diligently conduct thorough quality control checks to ensure their reliability and longevity under even the harshest road conditions you may encounter.

Have questions about compatibility or need advice on finding the right fit? Our team of knowledgeable professionals is always ready to assist you every step of the way. Whether through calls at 1-800-922-3283 or emails sent directly via store.superiorspring@gmail.com count on us as your trusted partners in maximizing your vehicle's potential with superior leaf spring applications.

We take immense pride in offering top-tier products that consistently surpass industry benchmarks just like our high-quality leaf springs proudly manufactured right here in America! Step up your game today by choosing Superior Spring?ÇÖs trustworthy solutions designed specifically for your heavyweight beast-of-a-truck - ensuring peak performance even amidst demanding driving conditions!

Don't settle; choose

When replacing leaf springs, the removed u-bolts cannot be reused.

Suspension u-bolts are manufactured with a smooth rolled thread, while the mating hi-nuts are manufactured with sharp cut threads. When a u-bolt is tightened to its recommended torque level, the u-bolt threads stretch as they mate with the hi-nuts. Although it is not always visible to the naked eye, this damages the threads. Removed the hi-nuts from the u-bolt will cause a cross-threading that will not allow the u-bolt to be adequately re-torqued.
